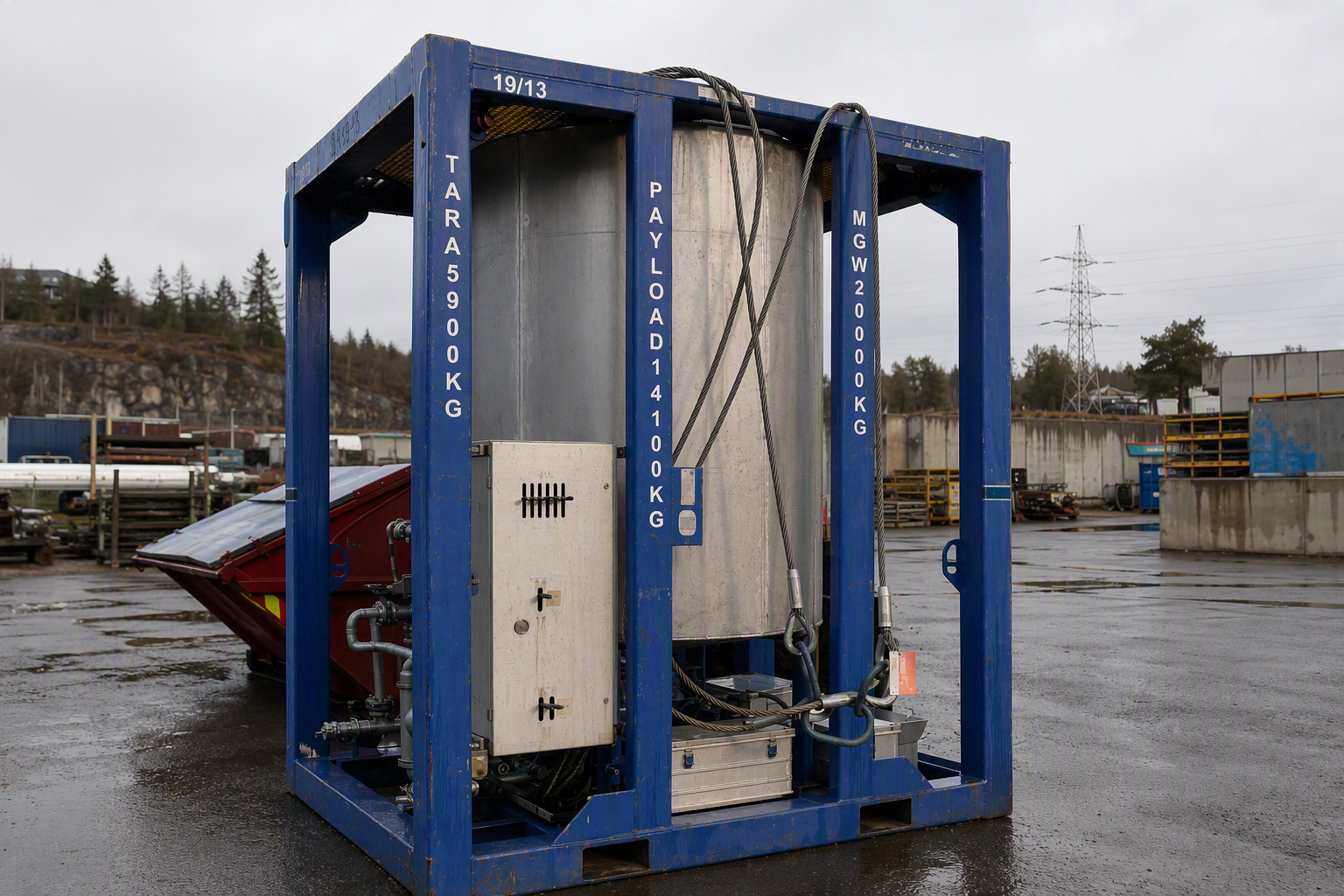

Tank TU 8
A single 8m³ (50 BBL) compartment tank containing an independent , hydraulic driven, paddle mix system, 2 x c-pumps and a air driven diaphragm pump. This unit are designed specifically for applications in 3G areas (Zone 2) and is CE, NORSOK Z-015, DNV 2.7-1 and ATEX Zone 1 compliant.
The unit can operate in ambient temperatures from -20° C to +50° C. Unit sound pressure level (SPL) is equal or below 83 dBA @ 1m according NORSOK Z-015 requirements.
Tank can be delivered with top tank handrails, caged ladder and fill hopper in aluminium as option.
One tank available.
Main specifications
- Max input hydraulic flow 133 lpm
- Max input hydraulic pressure 230 bar
- Tank material Stainless steel (SS304)
- Pipe material Stainless steel (SS304
Download datasheet above for interface and more details.
Dimension & Weight
Length: 3200 mm
Width: 2400 mm
Height: 3700 mm
Weight: 6000 kg
Payload: 14 000 kg (certified to be lifted with content)
