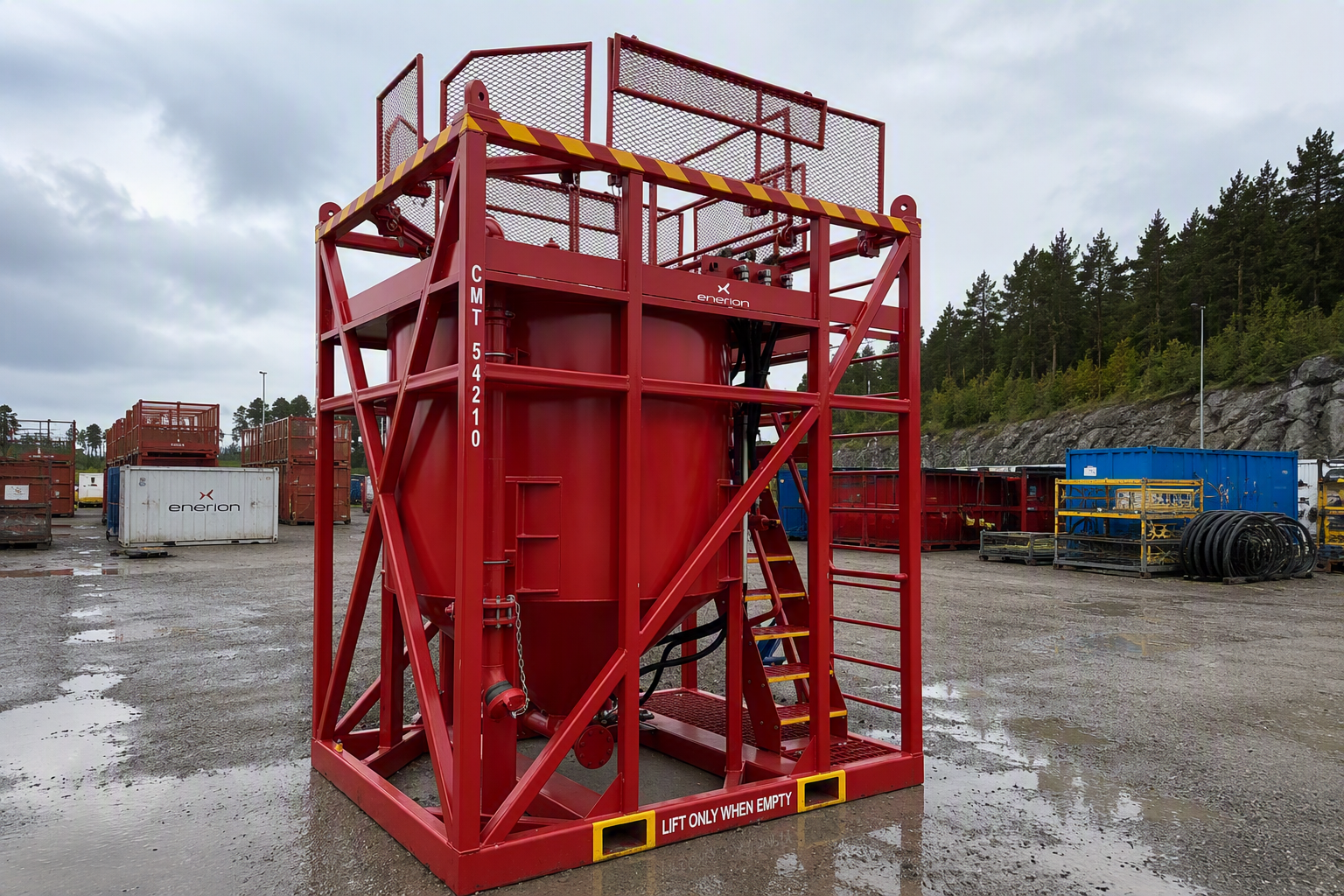

Batch Mixer BM 4
A single 4m³ (25 BBL) blender unit with compartment tank containing an independent paddle mix system. This unit are designed specifically for applications in 3G areas (Zone 2) and is CE, NORSOK Z-015, DNV 2.7-1 and ATEX Zone 2 compliant.
The unit can operate in ambient temperatures from -20° C to +50° C. Unit sound pressure level (SPL) is equal or below 83 dBA @ 1m according NORSOK Z-015 requirements.
Main specifications
- Max input hydraulic flow 150 lpm
- Max input hydraulic pressure 210 bar
- Jet mixing system Venturi suction line
- Tank material Carbon steel (A105)
- Pipe material Carbon steel (A105)
Download datasheet above for interface and more details.
Dimension & Weight
Length: 3000 mm
Width: 2250 mm
Height: 365 mm
Weight: 4130 kg
Payload: 10 045 kg (Lift Empty Only)
